Description

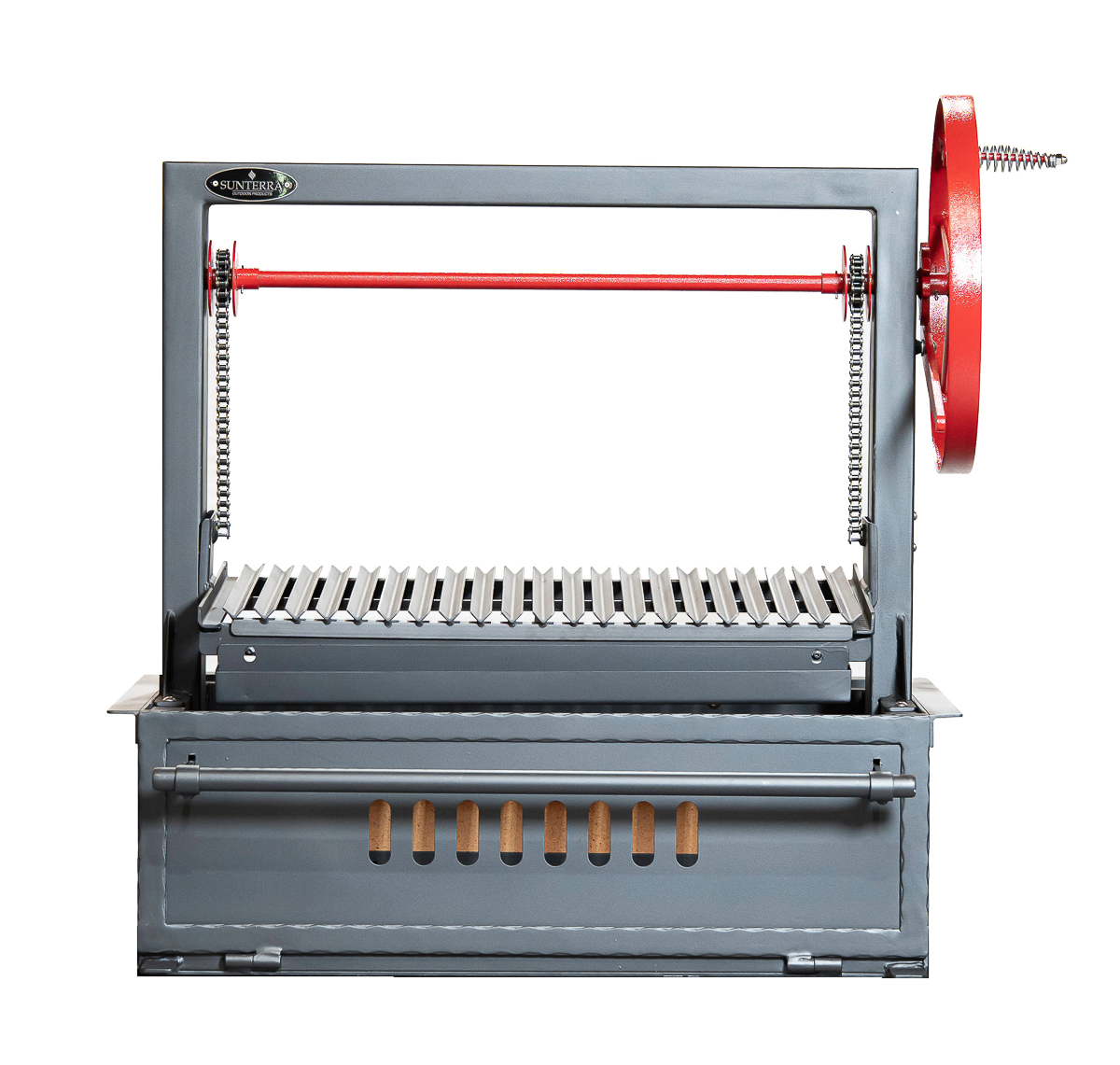

All grills now come with the door swinging down and with chain drive, instead of cables. Pictures are being updated.

A NSF package upgrade will need to be purchased to become NSF Certified.

Images reflect general program, please review specs and features noted as relates to product size

SPECS:

• Thickness – Grill base floor and side walls heavy gauge 3/16″ steel
• Thickness – Side walls: include fire brick
• Width: 60″ (Overall 78″ end of flywheel to flywheel handles)
• Depth: 30″ (Overall 35″ includes handles)
• Height: 35 3/4” (Overall 41 1/4” from bottom of firebox to the top of flywheel)
• Height Firebox: 12″
• Weight: 712.5 lbs.
• 1033.5 Sq. in. Cooking Surface (2 grates each – 19.5″ x 26.5″)
• Finish: Charcoal
• Flywheel Assembly Finish Option: Red or Charcoal
• Crate size: 70″L x 43″W x 48″H
• Crate weight: 837.5 Lbs

INCLUDED

• Manufactured with Heavy Gauge Steel
• Includes welded flange
• Fire bricks included for heat retention and distribution
• Double Swing Down and Double Grate
• Three Step metal and finish process with 1200 degree Paint
• Heavy Duty flywheels w/cool to the touch handles.
• 1000 lbs stainless steel aircraft cable. Raises & lowers V channel grates
• V channel grates are inverted and slopped to the front of the grill to catch fats & juices to reduce flare-up
• Wood and Lump Charcoal Fuel
• Sliding Damper System w/cool to the touch handles.
• Removable Drip Tray
